CVTE-15-NC-060-ABS56-EPC02400-1

CVTE-15-NC-060-ABS56-EPC02400-1

CVTE-15-NC-060

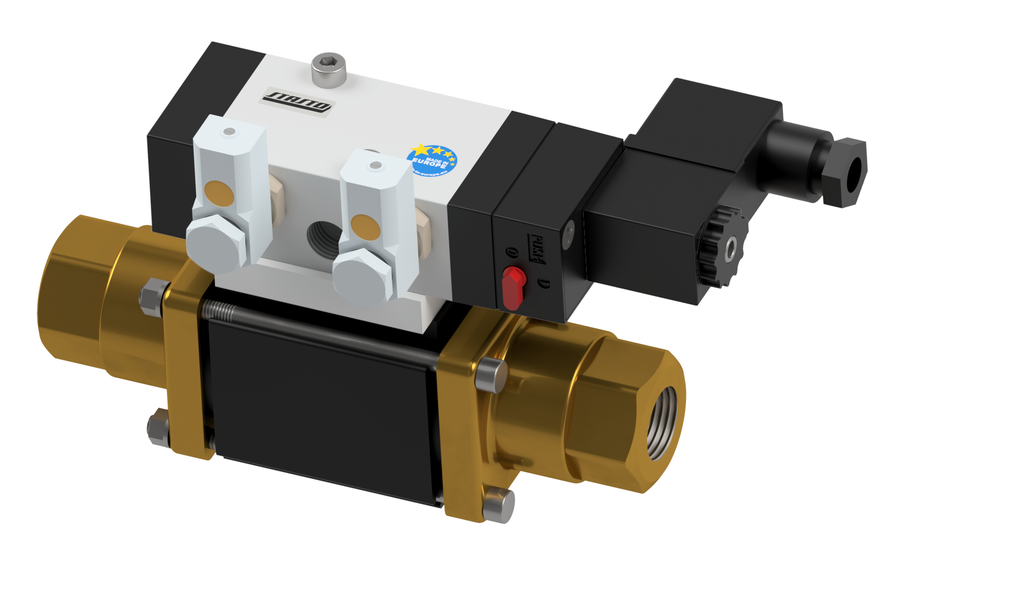

2/2-way coaxial valve; Externally controlled; 3/4" NPT; 0...100bar; DN15; NC; Body: Stainless steel; Medium: Hydrogen; Special seals; Incl. certificate for vacuum; Incl. inspection certificate 3.1; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); ATEX Ex II 2G Ex h IIC T-20°C...+70°C Gb / Ex II 2D Ex h IIIC T-20°C...+70°C Db; Free of oil and grease for hydrogen; Special version
ABS56
Mounted pilot valve; Speed control; Suitable for 2/2-way coaxial valve And 3/2-way-coaxial valve; Externally controlled; DN15...DN50; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC

Intrastat No.: 84818073
Country of origin: Germany Made in Europe
Weight: 4.704 Kg
Short Itemnumber: CVTE15NC060ABS56EPC024001
https://www.stasto.hu/web/image/product.template/217625/image_1920?unique=a753443

CVTE-15-NC-060
2/2-way coaxial valve; externally controlled; 3/4" NPT; 0...100bar; DN15; NC; body: stainless steel; medium: hydrogen; special seals; incl. certificate for vacuum; incl. inspection certificate 3.1; incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); ATEX Ex II 2G Ex h IIC T-20°C...+70°C Gb / Ex II 2D Ex h IIIC T-20°C...+70°C Db; free of oil and grease for hydrogen; special version
ABS56
mounted pilot valve; speed control; suitable for 2/2-way coaxial valve and 3/2-way-coaxial valve; externally controlled; DN15...DN50; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

3.195,80 € 3195.8 EUR 3.195,80 €

ár kérésre

excl. tax
  • Design
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Design ATEX
Brand STASTO
Documents
Data sheets, drawings and CAD files
Design ATEX
Brand STASTO

CVTE-15-NC-060-ABS56-EPC02400-1

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
CVTE-15-NC-060
CVTE-15-NC-060 x 1.0 Pcs
CVTE-15-NC-060
2/2-way coaxial valve; Externally controlled; 3/4" NPT; 0...100bar; DN15; NC; Body: Stainless steel; Medium: Hydrogen; Special seals; Incl. certificate for vacuum; Incl. inspection certificate 3.1; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); ATEX Ex II 2G Ex h IIC T-20°C...+70°C Gb / Ex II 2D Ex h IIIC T-20°C...+70°C Db; Free of oil and grease for hydrogen; Special version
ABS56
ABS56 x 1.0 Pcs
ABS56
Mounted pilot valve; Speed control; Suitable for 2/2-way coaxial valve And 3/2-way-coaxial valve; Externally controlled; DN15...DN50; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
EPC02400-1
EPC02400-1 x 1.0 Pcs
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
