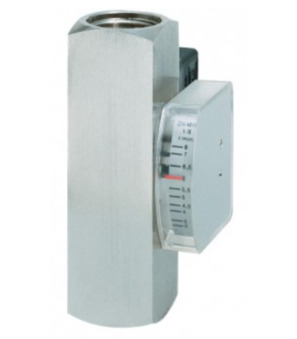

Flow monitors FM24-10-N-8
flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.246 Kg
Short Itemnumber: FM2410N8
Country of origin: Germany
Weight: 1.246 Kg
Short Itemnumber: FM2410N8
flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;
| dimension | |
|---|---|
| Connection | G 1" |
| Length | 130 mm |
| function | |
| Switch unit | NO contact |
| Electrical key figures | |
| U max. | 250 V |
| I max. | 3 A |
| pressure | |
| Maximum pressure | 250 bar |
| characteristics | |
| Switching range | 2...8 l/min |
No spare parts are available for this product.
