FR-10-20-08-R-PE-SS-01

FR-10-20-08-R-PE-SS-01

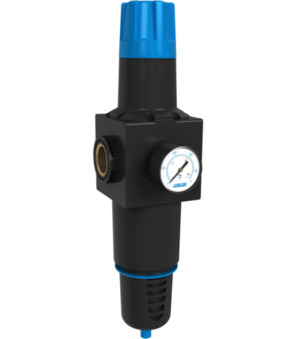

Filter regulator Series FR01/FR; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1"; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar; Flow direction From right to left

Intrastat No.: 84811099
Country of origin: Italy
Weight: 2.22 Kg
Short Itemnumber: FR102008RPESS01
https://www.stasto.hu/web/image/product.template/218522/image_1920?unique=ef8fb42

filter regulator series FR01/FR; relieving; drain valve semi-automatic; pressure range 0,5...8bar; filter element 20µm; plastic bowl with protection cage; connection 1"; flow at 6,3bar/Δp=1bar 13800Nl/min; max. inlet pressure 12,5bar; flow direction from right to left

307,10 € 307.1 EUR 307,10 €

ár kérésre

excl. tax
  • Connection
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1"
Pressure range 0,5...8bar
Flow rate at 6.3bar/Δp=1bar 13800 Nl/min
Max. inlet pressure 12,5 bar
All specifications (6)
Connection 1"
Pressure range 0,5...8bar
Flow rate at 6.3bar/Δp=1bar 13800 Nl/min
Max. inlet pressure 12,5 bar
Filter element 20 µm
Brand STASTO
Filter regulator FR-10-20-08-R-PE-SS
FR-10-20-08-R-PE-SS x 1.0 Pcs
Filter regulator FR-10-20-08-R-PE-SS
Filter regulator Series FR01/FR; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1"; Flow at 6,3bar/Δp=1bar 13800Nl/min; Max. inlet pressure 12,5bar
Bourdon tube manometer MA001-50R-10-D
MA001-50R-10-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-10-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/4"
