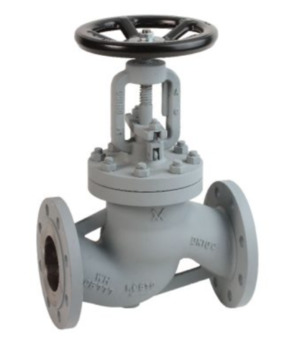

Globe valve Series GL120; PN40; Body Steel; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10…+400°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; DN 150mm; Length 480mm; Pressure range 0...21bar
Intrastat No.: 84818073
Country of origin: Italy
Weight: 95.0 Kg
Short Itemnumber: GL120150W3C
Country of origin: Italy
Weight: 95.0 Kg
Short Itemnumber: GL120150W3C
globe valve series GL120; PN40; body steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10…+400°C; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; DN 150mm; length 480mm; pressure range 0...21bar
Technical specifications
| Pressure range | 0...21 bar |
|---|---|
| DN | 150 mm |
| Length | 480 mm |
| Pressure range | 0...21 bar |
| DN | 150 mm |
| Length | 480 mm |
No spare parts are available for this product.
