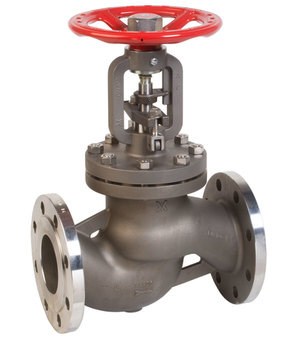

Globe valve Series GL123; PN40; Body 1.4408; Seat, Cone, Stem Stainless steel 1.4401; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10..+400°C; DN 65mm; Length 290mm; Pressure range 0-40bar
Country of origin: Italy
Weight: 26.5 Kg
Short Itemnumber: GL12365W
globe valve series GL123; PN40; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10..+400°C; DN 65mm; length 290mm; pressure range 0-40bar
Technical specifications
| Pressure range | 0...40 bar |
|---|---|
| DN | 65 mm |
| Length | 290 mm |
| Flange | PN40 |
| Pressure range | 0...40 bar |
| DN | 65 mm |
| Length | 290 mm |
| Flange | PN40 |
GL123-65-W
