L0R008

L0R008

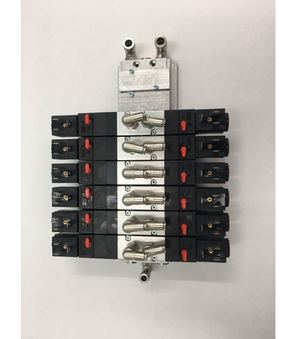

STASTO combination 8-way valve manifold Series E consisting of: 6 pcs E53W2SM18, 5/3-way solenoid valve, centre position open, 2 pcs blanking plate, 24VDC incl. LED plug with 2m cable inlet to manifold prepared for a 6mm hose silencer outlet 8mm hose connection and sealing screws outlets prepared for a 4mm hose fully assembled and tested

Intrastat No.: 84812090
Country of origin: Italy
Weight: 4.66 Kg
Short Itemnumber: L0R008
https://www.stasto.hu/web/image/product.template/101327/image_1920?unique=ba7a68c

1.725,10 € 1725.1 EUR 1.725,10 €

ár kérésre

excl. tax
  • Connection
  • Dimension
  • Function
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Brand STASTO
Manifold sub-base ME818
ME818 x 1.0 Pcs
Manifold sub-base ME818
Manifold sub-base Series ME; For way-valves Series E5 And V5; Anodized aluminum; Number of valves 8; Pressure connection 1/4"; Exhaust ports 1/4"; Valve size 1/8"
5/3-way valve E53W2S918
E53W2S918 x 6.0 Pcs
5/3-way valve E53W2S918
5/3-way valve Series E5.; Pilot-operated; Pressure range 3...10bar; Actuation Electrical/electrical; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 6mm; Central position Opened; Flow rate 530Nl/min
C001-03
C001-03 x 12.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
C002-31-LVCV20-2 x 12.0 Pcs
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
Plug screw TH50-14-N-0
TH50-14-N-0 x 3.0 Pcs
Plug screw TH50-14-N-0
Plug screw Series TH50; Nickel plated brass; With o-ring NBR; Cylindrical thread; Hexagon socket; Thread 1/4"
