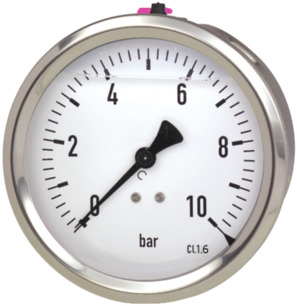

Glycerin manometer MA030-40R-10
Glycerin manometer Series MA030-R; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Polycarbonat; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0...10; Unit bar; Connection 1/8"
Intrastat No.: 90262040
Country of origin: Austria
Weight: 0.1 Kg
Short Itemnumber: MA03040R10
Country of origin: Austria
Weight: 0.1 Kg
Short Itemnumber: MA03040R10
glycerin manometer series MA030-R; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass polycarbonat; ambient temperature -20...+60°C; medium temperature max. +100°C; connection rear; class 1,6; diameter 40mm; indicating range 0...10; unit bar; connection 1/8"
| dimension | |
|---|---|
| Diameter | 40 mm |
| Connection | 1/8" |
| characteristics | |
| Indicating range | 0...10 |
| Unit | bar |
No spare parts are available for this product.
