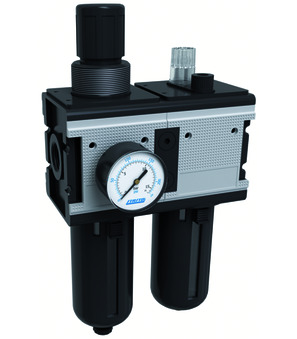

Maintenance unit MU203-34H-0,5/10-M

Maintenance unit MU203-34H-0,5/10-M

Maintenance unit Series Modul MU203-M; Relieving; Drain valve Semi-automatic; Pressure range 0,5...10bar; Metal bowl; Filter element 5µm; Connection 3/4"; Flow at 6bar/Δp=1bar 9500Nl/min; Max. inlet pressure 16bar; Filter element 5µm

Wartungseinheit Serie Modul MU203-M
Wartungseinheit Serie Modul MU203-M
Intrastat No.: 84811005
Country of origin: Germany
Weight: 3.43 Kg
Short Itemnumber: MU20334H0.510M

Scope of delivery

maintenance unit, manometer
https://www.stasto.hu/web/image/product.template/122439/image_1920?unique=d2d3850

maintenance unit series Modul MU203-M; relieving; drain valve semi-automatic; pressure range 0,5...10bar; metal bowl; filter element 5µm; connection 3/4"; flow at 6bar/Δp=1bar 9500Nl/min; max. inlet pressure 16bar; filter element 5µm

573,00 € 573.0 EUR 573,00 €

ár kérésre

excl. tax
  • Connection
  • Dimension
  • Bowl
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/4"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 9500 Nl/min
Max. inlet pressure 16 bar
All specifications (7)
Documents
Data sheets, drawings and CAD files
Connection 3/4"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 9500 Nl/min
Max. inlet pressure 16 bar
Filter element 5 µm
Bowl With transparent inspection pipe
Brand STASTO

MU203-34H-0,5/10-M

Documents

4 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
FR03-34H-0,5/10-M-X
FR03-34H-0,5/10-M-X x 1.0 Pcs
FR03-34H-0,5/10-M-X
Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Connection 3/4"; Flow at 6bar 14000Nl/min; Filter element 5ym; Bowl With transparent inspection pipe
Bourdon tube manometer MA001-50R-16-D
MA001-50R-16-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-16-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
Lubricator LU03-34H-M
LU03-34H-M x 1.0 Pcs
Lubricator LU03-34H-M
Lubricator Series Modul LU03-M; Inlet pressure Max. 20bar; Metal bowl; Connection 3/4"; Flow at 6bar/Δp=1bar 16000Nl/min; Bowl mit Sichtrohr; Inlet pressure Max. 16bar
