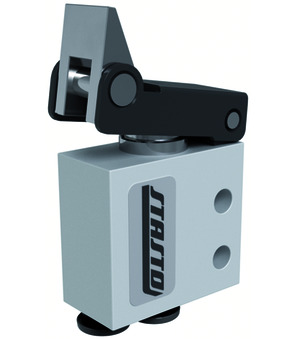

3/2-way valve Series PM142, MS; Nominal diameter 2,5mm; Pressure range 0...10bar; Flow rate 90Nl/min; Actuation Unidirectional lever/spring; Operating force at 6 bar: 12N; Connection 4mm; Function NC
Country of origin: Italy
Weight: 0.06 Kg
Short Itemnumber: PM14204C
3/2-way valve series PM142, MS; nominal diameter 2,5mm; pressure range 0...10bar; flow rate 90Nl/min; actuation unidirectional lever/spring; operating force at 6 bar: 12N; connection 4mm; function NC
Technical specifications
| Connection | 4 mm |
|---|---|
| Flow rate | 90 Nl/min |
| Actuation | Unidirectional lever/spring |
| Pressure range | 0...10bar |
| Connection | 4 mm |
| Flow rate | 90 Nl/min |
| Actuation | Unidirectional lever/spring |
| Pressure range | 0...10bar |
| Function | NC |
| DN | 2,5 mm |
| Actuating force at 6 bar | 12 N |
PM142-04-C
