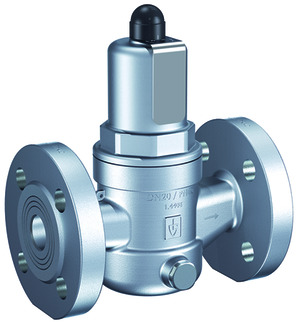

Flange pressure regulator PR12-80H-1/8-E-3K
Flange pressure regulator Series PR12-E; Body 1.4408; Fine screen Stainless steel; Seals EPDM; Medium temperature -20...120°C; Seals With FDA-Approval; Diaphragm With Drinking water certification; DN 80mm; Flange PN40; Maximum inlet pressure 40bar; Operating pressure range 1...8bar; Mesh size 0,75mm; Suitable manometer 4129 + 4126
Intrastat No.: 84811019
Country of origin: Germany
Weight: 20.05 Kg
Short Itemnumber: PR1280H18E3K
Country of origin: Germany
Weight: 20.05 Kg
Short Itemnumber: PR1280H18E3K
flange pressure regulator series PR12-E; body AISI 316; fine screen stainless steel; seals EPDM; medium temperature -20...120°C; seals with FDA-approval; diaphragm with drinking water certification; DN 80mm; flange PN40; maximum inlet pressure 40bar; operating pressure range 1...8bar; mesh size 0,75mm; suitable manometer 4129 + 4126
| dimension | |
|---|---|
| DN | 80 mm |
| Flange | PN40 |
| Mesh size | 0,75 mm |
| pressure | |
| Outlet pressure | 1...8 bar |
| Inlet pressure | Max. 40 bar |
| characteristics | |
| Suitable manometer | 4129 + 4126 |
No spare parts are available for this product.
