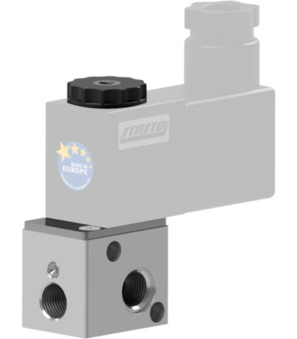

PS125-18-C
3/2-way valve Series PS125; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 1,2mm; Function NC; Pressure range 0…10bar; Flow rate 90Nl/min
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
Country of origin: Italy
Weight: 0.113 Kg
Short Itemnumber: PS12518CC00103
NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N
Technical specifications
| Connection | 1/8" |
|---|---|
| Actuation | Electric/Spring |
| Pressure range | 0...10 bar |
| Flow rate | 90 Nl/min |
| Connection | 1/8" |
| Actuation | Electric/Spring |
| Pressure range | 0...10 bar |
| Flow rate | 90 Nl/min |
| DN | 1,2 mm |
| Function | NC |
| Voltage | 24VDC / 48V/50-60Hz |
PS125-18-C-C001-03
