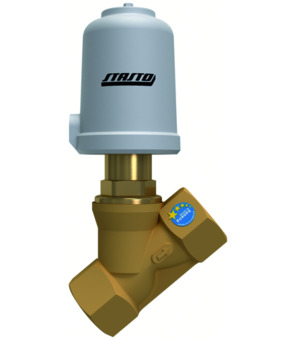

Pneumatically operated seat valve SE02-20-RT83

Pneumatically operated seat valve SE02-20-RT83

Pneumatically operated seat valve Series SE02-RT; NC; Body Bronze; Seal PTFE; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C; G 2"; DN 50mm; Operating pressure 0-7,5bar; Control pressure 5,6-10bar; Diameter Actuator 80mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 4.45 Kg
Short Itemnumber:SE0220RT83
https://www.stasto.hu/web/image/product.template/104730/image_1920?unique=f96697f

pneumatically operated seat valve series SE02-RT; NC; body bronze; seal PTFE; female thread; for liquids; closing against flow; medium temperature -30...+170°C; G 2"; DN 50mm; operating pressure 0-7,5bar; control pressure 5,6-10bar; diameter actuator 80mm

750,10 € 750.1 EUR 750,10 €

ár kérésre

  • Male thread
  • Female thread
  • DN
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 2"
DN 50 mm
Diameter Actuator 80 mm
pressure
Operating pressure 0...7,5 bar
Control pressure 5,6...10 bar
characteristics
Medium temperature -30...+170 °C
