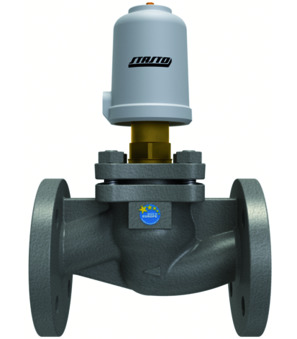

SE09-100-DN1251
Pneumatically operated seat valve; NC; Body EN-GJS-400-18-LT; Seal NBR; Flange PN16; Pressure compensated cone for high pressure; Medium temperature -30...+80°C; DN 100mm; Operating pressure 0-16bar; Control pressure 2,2-10bar; Diameter Actuator 125mm; Electrical position indicator with 2 microswitches; Electrical position indicator with cable bushing
Intrastat No.: 84818079
Country of origin: Germany
Weight: 14.22 Kg
Short Itemnumber: SE09100DN1251
Country of origin: Germany
Weight: 14.22 Kg
Short Itemnumber: SE09100DN1251
pneumatically operated seat valve; NC; body EN-GJS-400-18-LT; seal NBR; flange PN16; pressure compensated cone for high pressure; medium temperature -30...+80°C; DN 100mm; operating pressure 0-16bar; control pressure 2,2-10bar; diameter actuator 125mm; electrical position indicator with 2 microswitches; electrical position indicator with cable bushing
