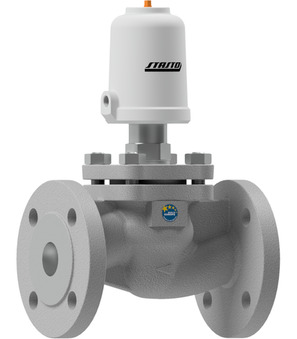

Pneumatically operated seat valve Series SE23-ST; NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C; DN 15mm; Operating pressure 0...31bar; Control pressure 5...10bar; Diameter Actuator 50mm
Country of origin: Germany
Weight: 3.9 Kg
Short Itemnumber: SE2315ST51
pneumatically operated seat valve series SE23-ST; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 15mm; operating pressure 0...31bar; control pressure 5...10bar; diameter actuator 50mm
Technical specifications
| DN | 15 mm |
|---|---|
| Operating pressure | 0...31 bar |
| Control pressure | 5...10 bar |
| Diameter Actuator | 50 mm |
| DN | 15 mm |
| Operating pressure | 0...31 bar |
| Control pressure | 5...10 bar |
| Diameter Actuator | 50 mm |
| Flange | PN40 |
| Design | ATEX |
SE23-15-ST51
