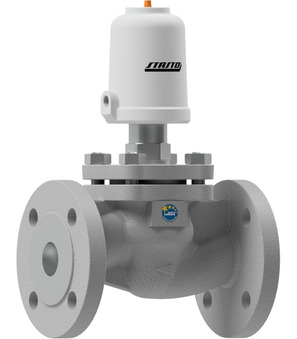

SE23-65-ST1251-03
Pneumatically operated seat valve Series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C; DN 65mm; Operating pressure 0...25bar; Control pressure 2...10bar; Diameter Actuator 125mm; Incl. Stainless steel indicator pin
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SE2365ST125103
Country of origin: Germany
Short Itemnumber: SE2365ST125103
pneumatically operated seat valve series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 65mm; operating pressure 0...25bar; control pressure 2...10bar; diameter actuator 125mm
| dimension | |
|---|---|
| DN | 65 mm |
| Flange | PN40 |
| Diameter Actuator | 125 mm |
| design | |
| Design | ATEX |
| pressure | |
| Operating pressure | 0...18 bar |
| Control pressure | 5...10 bar |
No spare parts are available for this product.
