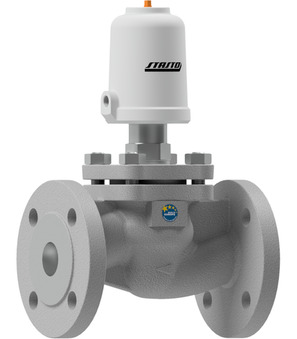

Pneumatically operated seat valve SE23-80-ST81

Pneumatically operated seat valve SE23-80-ST81

Pneumatically operated seat valve Series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C; DN 80mm; Operating pressure 0...4bar; Control pressure 5...10bar; Diameter Actuator 80mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 3.9 Kg
Short Itemnumber: SE2380ST81
https://www.stasto.hu/web/image/product.template/150895/image_1920?unique=3190a4b

pneumatically operated seat valve series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 80mm; operating pressure 0...4bar; control pressure 5...10bar; diameter actuator 80mm

3.561,00 € 3561.0 EUR 3.561,00 €

ár kérésre

  • DN
  • Cable length
  • Flange
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 80 mm
Flange PN40
Diameter Actuator 80 mm
design
Design ATEX
pressure
Operating pressure 0...4 bar
Control pressure 5...10 bar
