SE25-15-ST51-03

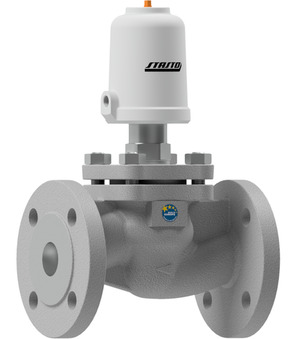

Pneumatically operated seat valve; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; High temperature design -30...+200°C; DN 15mm; Operating pressure 0...40bar; Control pressure 5…10bar; Diameter Actuator 50mm; Incl. Limiting of stroke
Intrastat No.: 84818079
Country of origin: Germany
Weight: 2.5 Kg
Short Itemnumber: SE2515ST5103
Country of origin: Germany
Weight: 2.5 Kg
Short Itemnumber: SE2515ST5103
pneumatically operated seat valve; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media; closing with flow; high temperature design -30...+200°C; DN 15mm; operating pressure 0...40bar; control pressure 5…10bar; diameter actuator 50mm; incl. limiting of stroke
| Design | ATEX |
No spare parts are available for this product.
