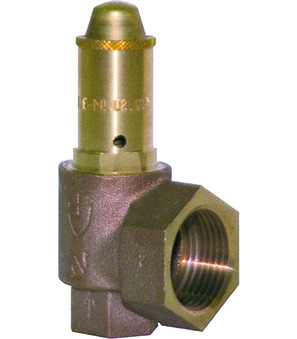

Safety valve, full stroke 1"-11/2"-23-6

Safety valve, full stroke 1"-11/2"-23-6

Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…+225°C; Inlet G 1"; Outlet G 11/2"; DN 23mm; Set pressure 6bar

Intrastat No.: 84814090
Country of origin: Germany Made in Europe
Weight: 1.92 Kg
Short Itemnumber: SF0110W236T
https://www.stasto.hu/web/image/product.template/96603/image_1920?unique=bcfc56d

safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 1"; outlet G 11/2"; DN 23mm; set pressure 6bar

591,00 € 591.0 EUR 591,00 €

ár kérésre

excl. tax
  • DN
  • Inlet G
  • Outlet
  • Set pressure

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Inlet G 1"
Outlet G 1 1/2"
DN 23 mm
Set pressure 6 bar
Documents
Data sheets, drawings and CAD files
Inlet G 1"
Outlet G 1 1/2"
DN 23 mm
Set pressure 6 bar

SF01-10W-23-6-T

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
