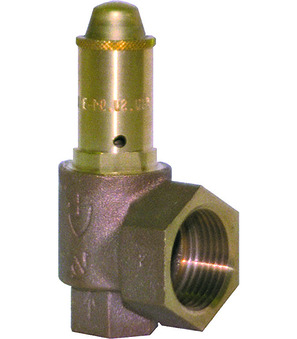

Safety valve, full stroke 1/2"-1"-15,8-257
Safety valve, full stroke Series SF01-T; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Gases and steams; Medium temperature -60...225°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Discharge capacity at 6bar(g) steam 257kg/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.73 Kg
Short Itemnumber:SF0112W15.8XT
Country of origin: Germany
Weight: 0.73 Kg
Short Itemnumber:SF0112W15.8XT
safety valve, full stroke series SF01-T; with twist lifting; body bronze; seal PTFE; application: compressed air, gases and steams; medium temperature -60...225°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 1/2"; outlet G 1"; DN 15,8mm; discharge capacity at 6bar(g) steam 257kg/h
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 15,8 mm |
| Female thread 2 | G 1" |
| characteristics | |
| Blow-off capacity at 6 bar steam | 257 kg/h |
No spare parts are available for this product.
