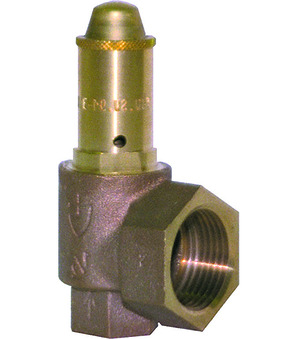

Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases; Incl. Inspection certificate EN-10204-3.1 For pressure, function and tightness; ATEX zone 1 and 21; Seal EPDM; Medium temperature -40…170°C°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 14bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.47 Kg
Short Itemnumber: SF0412W15.8144F
Country of origin: Germany
Weight: 0.47 Kg
Short Itemnumber: SF0412W15.8144F
Vollhubsicherheitsventil Serie SF04; mit Drehanlüftung; mit Bronzefaltenbalg; Körper Rotguss; Anwendung: giftige, brennbare Gase; inkl. Abnahmeprüfzeugnis EN-10204-3.1 für Druck, Funktion und Dichtheit; ATEX Zone 1 und 21; Dichtung EPDM; Mediumstemperatur -40…170°C°C; Eintritt G 1/2"; Austritt G 1"; DN 15,8mm; Einstelldruck 14bar
Technical specifications
| Seal | EPDM |
|---|---|
| Medium temperature | -40...+170 °C |
| Inlet G | 1/2" |
| Outlet | G 1" |
| Seal | EPDM |
| Medium temperature | -40...+170 °C |
| Inlet G | 1/2" |
| Outlet | G 1" |
| DN | 15,8 mm |
| Set pressure | 14 bar |
| Seal | EPDM |
| Female thread | G 1/2" |
| Female thread 2 | G 1" |
| Design | ATEX |
No spare parts are available for this product.
