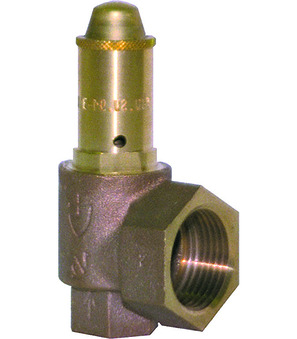

Full-lift safety valve SF06-12W-15.8-3,5-T
Safety valve, full stroke Series SF06; With twist lifting; With bronze-bellow; Body Bronze; Seal PTFE; Application: Toxic, flammable liquids; Medium temperature -60...225°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 3,5bar
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber:SF0612W15.83.5T
Country of origin: Germany
Short Itemnumber:SF0612W15.83.5T
safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal PTFE; application: toxic, flammable liquids; medium temperature -60...225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 3,5bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 2 bar |
No spare parts are available for this product.
