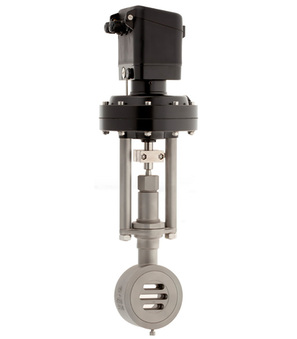

Control valve Type SG10 80-48-125
Control valve Type SG10; DN80; PN10/40; NC; Material: 1.4571/1.4581; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 48 (100%); Characteristic Equal percentage; Diaphragm actuator 125cm²; Mounted I/P-positioner; TZID-C; II2G Ex ib IIC T6/4 Gb; HART; With visual position indicator; Stainless steel-Type plate; Earthing connection
Intrastat No.: 84818079
Country of origin: Germany
Weight: 14.0 Kg
Short Itemnumber: SG1080WWC125302
Country of origin: Germany
Weight: 14.0 Kg
Short Itemnumber: SG1080WWC125302
control valve type SG10; DN80; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 48 (100%); characteristic equal percentage; diaphragm actuator 125cm²; mounted I/P-positioner; TZID-C; II2G Ex ib IIC T6/4 Gb; HART; with visual position indicator; stainless steel-type plate; earthing connection
No Specifications
No spare parts are available for this product.
