SG17-50-WWC4/10
8044-GS1-065-4065491
8044-GS1-065-4065491
5.501,30 €
5.501,30 €
Control valve Type SG07 40-11-125
Control valve Type SG07 40-11-125
5.459,50 €
5.459,50 €

SG17-50-WWC4/10

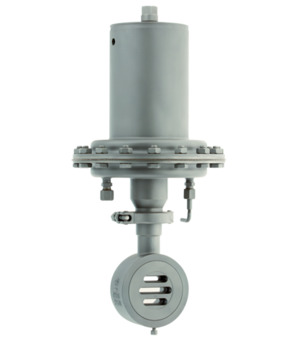

Sliding gate-pressure regulator; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Diaphragm CR; Fixed disc Stainless steel AISI 316Ti coated; Sliding disc Carbon material; Nominal diameter 50mm; Kvs-value 45 (100%); Characteristic Linear; Pressure range 4...10bar; Length 43mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber:SG1750WWC410
https://www.stasto.hu/web/image/product.template/153862/image_1920?unique=bb27f69

sliding gate-pressure regulator; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; diaphragm CR; fixed disc stainless steel AISI 316Ti coated; sliding disc carbon material; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 4...10bar; length 43mm

5.459,30 € 5459.3 EUR 5.459,30 €

ár kérésre

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    No spare parts are available for this product.
