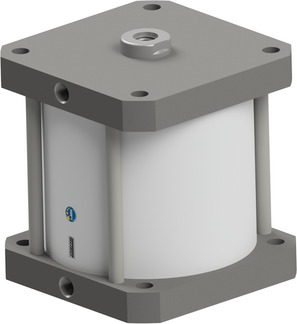

Short stroke magnetic cylinder Series SHDM; Double acting;; Pressure range 1...10bar; Piston rod with female thread; Diameter 160mm; Stroke 200mm; Piston rod thread M20; Connection G 3/8"; Push force at 6 bar 12057N
Country of origin: Italy
Weight: 10.6 Kg
Short Itemnumber: SHDM160200
short stroke magnetic cylinder series SHDM; double acting;; pressure range 1...10bar; piston rod with female thread; diameter 160mm; stroke 200mm; piston rod thread M20; connection G 3/8"; push force at 6 bar 12057N
Technical specifications
| Connection | G 3/8" |
|---|---|
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 200 mm |
| Connection | G 3/8" |
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 200 mm |
| Piston rod thread | M20 |
| Push force at 6 bar | 12057 N |
| Function | Double acting |
SHDM160-200
