SL001-18-1,7-BDA08012CS-C003-31-CV20-6

Price.

62,67 €
2/2-way solenoid valve Series SL001 Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series SL001
  6. SL001-18-1,7-BDA08012CS-C003-31-CV20-6

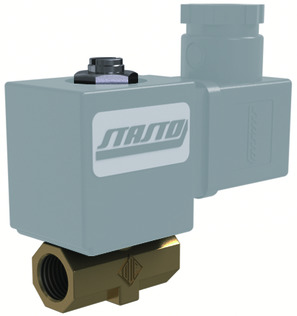

SL001-18-1,7-BDA08012CS-C003-31-CV20-6
SL001-18-1,7-BDA08012CS-C003-32-6
SL001-18-1,7-BDA08012CS-C003-32-6
52,93 €
52,93 €
SL001-18-1,7-BDA08012CS-C003-32-LV-2
SL001-18-1,7-BDA08012CS-C003-32-LV-2
58,17 €
58,17 €

SL001-18-1,7-BDA08012CS-C003-31-CV20-6

SL001-18-1,7
2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,7mm; Pressure AC 0-30bar; Pressure DC 0-20bar; Length 37mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.39 Kg
Short Itemnumber:SL001181.7BDA08012CSC00331CV206
https://www.stasto.hu/web/image/product.template/190443/image_1920?unique=f0f6b8d

SL001-18-1,7
2/2-way solenoid valve series SL001; directly operated; NC; body, tube brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/8"; DN 1,7mm; pressure AC 0-30bar; pressure DC 0-20bar; length 37mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

62,67 € 62.67 EUR 62,67 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/8"
DN 1,7 mm
Length 37 mm
Designs
Connector size 32 mm
design
Design With moulded PVC-cable (2 m)
Electrical key figures
Voltage 12VDC
Voltage type DC
pressure
Pressure AC 0...30 bar
Pressure DC 0...20 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
