SL001-18-1,7-BDA08223DS-C003-32-6

Price.

52,93 €
2/2-way solenoid valve Series SL001 Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series SL001
  6. SL001-18-1,7-BDA08223DS-C003-32-6

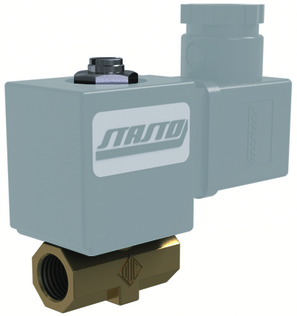

SL001-18-1,7-BDA08223DS-C003-32-6
SL001-18-1,7-BDA08110DS-C003-32-LV-1
SL001-18-1,7-BDA08110DS-C003-32-LV-1
61,72 €
61,72 €
2/2-way solenoid valve SL001-18-1,7-BDA08223DS-C003-31-CV20-6
2/2-way solenoid valve SL001-18-1,7-BDA08223DS-C003-31-CV20-6
62,67 €
62,67 €

SL001-18-1,7-BDA08223DS-C003-32-6

SL001-18-1,7
2/2-way solenoid valve Series SL001; Directly operated; NC; Body, Tube Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 1,7mm; Pressure AC 0-30bar; Pressure DC 0-20bar; Length 37mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.28 Kg
Short Itemnumber:SL001181.7BDA08223DSC003326
https://www.stasto.hu/web/image/product.template/182575/image_1920?unique=c1c1e6d

SL001-18-1,7
2/2-way solenoid valve series SL001; directly operated; NC; body, tube brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/8"; DN 1,7mm; pressure AC 0-30bar; pressure DC 0-20bar; length 37mm
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

52,93 € 52.93 EUR 52,93 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/8"
DN 1,7 mm
Length 37 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 220-230V/50-60Hz
Voltage type AC
pressure
Pressure AC 0...30 bar
Pressure DC 0...20 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
