SL012-34-BDV08024DY-C003-32-6

Price.

336,80 €
2/2-way solenoid valve Series SL012 Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series SL012
  6. SL012-34-BDV08024DY-C003-32-6

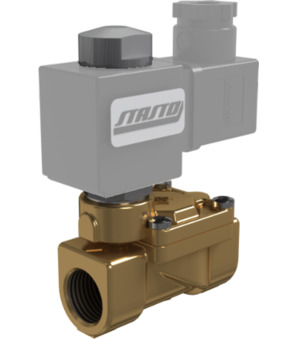

SL012-34-BDV08024DY-C003-32-6
21PW4F0T120-BDA08042AS-C003-31-CV20-6
21PW4F0T120-BDA08042AS-C003-31-CV20-6
161,80 €
161,80 €
21PW4F0T120-BDA08048AS-C003-31-CV20-6
21PW4F0T120-BDA08048AS-C003-31-CV20-6
158,30 €
158,30 €

SL012-34-BDV08024DY-C003-32-6

SL012-34
2/2-way solenoid valve Series SL012; Pilot-operated; NC; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,9-10bar; Length 74mm
BDV08024DY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.94 Kg
Short Itemnumber:SL01234BDV08024DYC003326
https://www.stasto.hu/web/image/product.template/192776/image_1920?unique=c5de58b

SL012-34
2/2-way solenoid valve series SL012; pilot-operated; NC; piston type; body brass; tube stainless steel one-piece; seal fibre-glass-reinforced PTFE; medium temperature -40...+180°C; standard coil BDV; connector size 32mm; G 3/4"; DN 19mm; pressure AC/DC 0,9-10bar; length 74mm
BDV08024DY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24V/50-60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

336,80 € 336.8 EUR 336,80 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 19 mm
Length 74 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24V/50-60Hz
Voltage type AC
pressure
Pressure AC/DC 0,9...10 bar
characteristics
Coil BDV
Approval UL/CSA/VDE
