SL016-12-02

Name: SL016-12-02
Brand: STASTO
SKU: SL016-12-02
Price: 621.3 EUR
Availability: InStock

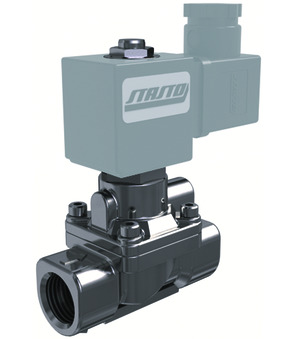

2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+60°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm; Free of oil and grease for oxygen

Intrastat No.: 84818073
Country of origin: Italy
Weight: 0.621 Kg
Short Itemnumber: SL0161202

2/2-way solenoid valve series 21X; pilot-operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+60°C; standard coil BDA; connector size 32mm; G 1/2"; DN 12mm; pressure AC/DC 0,1-20bar; length 72mm; free of oil and grease for oxygen

621,30 € 621.3 EUR 621,30 €

Female thread
- G 1/2"
DN
- 12 mm
Length
- 72 mm
Connector size
- 32 mm
Pressure DC
- 0,1...20 bar
Pressure AC/DC
- 0,1...20 bar
Seal
- FKM
Coil
- BDA
Medium temperature
- -10...+120 °C

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1/2"
DN	12 mm
Length	72 mm
Designs
Connector size	32 mm
pressure
Pressure DC	0,1...20 bar
Pressure AC/DC	0,1...20 bar
materials
Seal	FKM
characteristics
Coil	BDA
Medium temperature	-10...+120 °C

21X2KV120 x 1.0

2/2-way solenoid valve 21X2KV120

2/2-way solenoid valve Series 21X; Pilot-operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC/DC 0,1-20bar; Length 72mm
