SL200-12-BDA08024CS-P992364-C003-32-6

Price.

149,16 €
2/2-way solenoid valve Series SL200, 21H Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series SL200, 21H
  6. SL200-12-BDA08024CS-P992364-C003-32-6

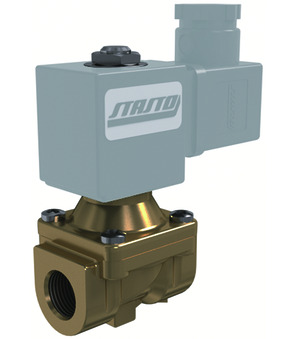

SL200-12-BDA08024CS-P992364-C003-32-6
2/2-way solenoid valve SL200-12-BDA08024CS-C003-32-6
2/2-way solenoid valve SL200-12-BDA08024CS-C003-32-6
86,26 €
86,26 €
SL200-12-BDA08024CS-C003-31-CV20-6
SL200-12-BDA08024CS-C003-31-CV20-6
96,00 €
96,00 €

SL200-12-BDA08024CS-P992364-C003-32-6

SL200-12
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1...20bar; Pressure DC 0,1...10bar; Length 50mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
P992364
Clock generator without cable plug; Connector size 32mm; Voltage 24V-240VAC/DC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.663 Kg
Short Itemnumber:SL20012BDA08024CSP992364C003326
https://www.stasto.hu/web/image/product.template/188312/image_1920?unique=c1842c2

SL200-12
2/2-way solenoid valve series SL200, 21H; pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/2"; DN 12mm; pressure AC 0,1...20bar; pressure DC 0,1...10bar; length 50mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
P992364
clock unit without connector; connector size 32mm; voltage 24V-240VAC/DC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

149,16 € 149.16 EUR 149,16 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
