SL200-38-BDV08110AY

Price.

90,30 €
2/2-way solenoid valve Series SL200, 21H Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series SL200, 21H
  6. SL200-38-BDV08110AY

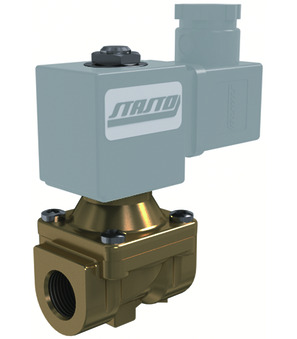

SL200-38-BDV08110AY
SL200-38-BDA08110DS-C003-32-LV-1
SL200-38-BDA08110DS-C003-32-LV-1
93,10 €
93,10 €
2/2-way solenoid valve SL200-38-BDV08230AY
2/2-way solenoid valve SL200-38-BDV08230AY
89,90 €
89,90 €

SL200-38-BDV08110AY

SL200-38
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 12mm; Pressure AC 0,1...20bar; Pressure DC 0,1...10bar; Length 50mm
BDV08110AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.45 Kg
Short Itemnumber:SL20038BDV08110AY
https://www.stasto.hu/web/image/product.template/213863/image_1920?unique=c5de58b

SL200-38
2/2-way solenoid valve series SL200, 21H; pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/8"; DN 12mm; pressure AC 0,1...20bar; pressure DC 0,1...10bar; length 50mm
BDV08110AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 110V/50Hz,120V/60Hz

90,30 € 90.3 EUR 90,30 €

ár kérésre

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/8"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 110V/50Hz, 120V/60Hz
Voltage type AC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal NBR
characteristics
Coil BDV
Medium temperature -10...+90 °C
Approval UL/CSA/VDE
