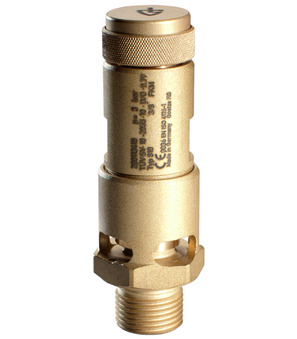

Safety valve SV01-14-7,5-30-T-3C
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal PTFE; connection G 1/4"; DN 7,5mm; set pressure 30bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SV01147.530T3C
Country of origin: Germany
Short Itemnumber: SV01147.530T3C
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal PTFE; connection G 1/4"; DN 7,5mm; set pressure 30bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
| dimension | |
|---|---|
| Male thread | G 1/4" |
| DN | 7,5 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 25 bar |
No spare parts are available for this product.
