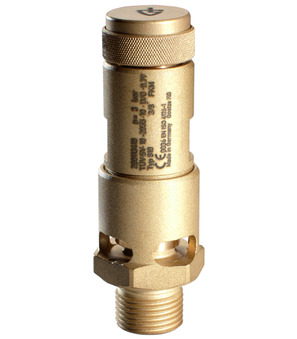

safety valve FKM-1/4"NPT-7,5-5,5
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. certificate ASME Boiler and Pressure, Vessel Code, Section VIII.Div 1 (ASME); seal FKM; connection 1/4"NPT; DN 7,5mm; set pressure 5,5bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.1 Kg
Short Itemnumber:SV0114N7.55.54Y
Country of origin: Germany
Weight: 0.1 Kg
Short Itemnumber:SV0114N7.55.54Y
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. certificate ASME Boiler and Pressure, Vessel Code, Section VIII.Div 1 (ASME); seal FKM; connection 1/4"NPT; DN 7,5mm; set pressure 5,5bar
| dimension | |
|---|---|
| Connection | G 1/4" |
| DN | 7,5 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 5,5 bar |
No spare parts are available for this product.
