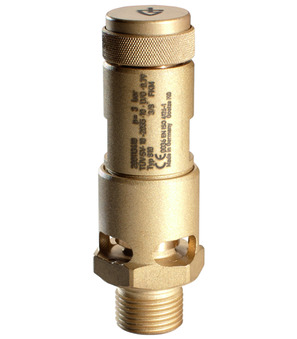

Safety valve FKM-3/8"-10-25
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal FKM; Connection G 3/8"; DN 10mm; Set pressure 25bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.16 Kg
Short Itemnumber:SV013810253C
Country of origin: Germany
Weight: 0.16 Kg
Short Itemnumber:SV013810253C
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; seal FKM; connection G 3/8"; DN 10mm; set pressure 25bar
| dimension | |
|---|---|
| Connection | G 3/8" |
| DN | 10 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 25 bar |
No spare parts are available for this product.
