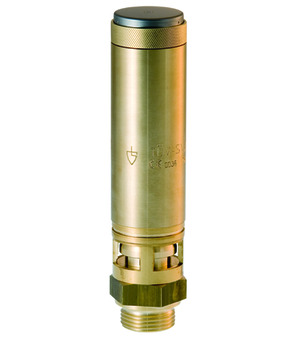

Safety valve SV02-34-20-11-3G
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; G 3/4"; DN 20mm; Set pressure 11bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.14 Kg
Short Itemnumber: SV023420113G
Country of origin: Germany
Weight: 1.14 Kg
Short Itemnumber: SV023420113G
Sicherheitsventil Serie SV02; mit Drehanlüftung; Körper Messing; Druckfeder Edelstahl; Dichtung FKM; Anwendung: Druckluft, ungiftige, nicht brennbare Gase, die frei austreten dürfen; Mediumstemperatur -20...200°C; inkl. TÜV-Abnahmeprüfzeugnis EN-10204-3.2; G 3/4"; DN 20mm; Einstelldruck 11bar
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 20 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 11 bar |
No spare parts are available for this product.
