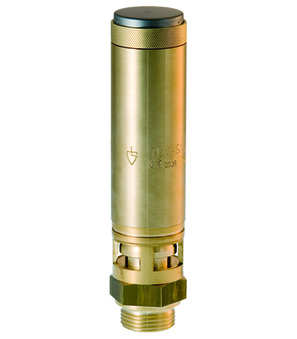

Safety valve SV02-34-20-2,3
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 3/4"; DN 20mm; Set pressure 2,3bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.12 Kg
Short Itemnumber:SV0234202.3
Country of origin: Germany
Weight: 1.12 Kg
Short Itemnumber:SV0234202.3
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 3/4"; DN 20mm; set pressure 2,3bar
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 20 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 2,3 bar |
No spare parts are available for this product.
