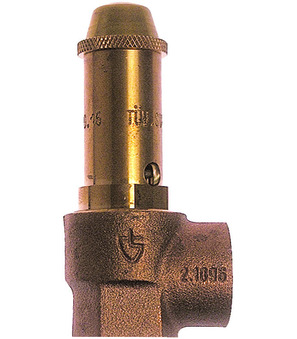

Safety valve Series SV04; With twist lifting; Body Bronze; Seal NBR; Application: Water, Neutral liquids; Medium temperature -30…+130°C; Possible set pressures 1...16bar In steps of 0,1 bar; G 11/2"; DN 22mm; Discharge capacity at 6bar(g) water 17,9m3/h
Country of origin: Germany
Weight: 1.2 Kg
Short Itemnumber: SV0411222X
safety valve series SV04; with twist lifting; body bronze; seal NBR; application: water, neutral liquids; medium temperature -30…+130°C; possible set pressures 1...16bar in steps of 0,1 bar; G 11/2"; DN 22mm; discharge capacity at 6bar(g) water 17,9m3/h
Technical specifications
| DN | 22 mm |
|---|---|
| Discharge capacity at 6bar(g) water | 17,9 m3/h |
| Female thread | G 1 1/2" |
| Brand | STASTO |
| DN | 22 mm |
| Discharge capacity at 6bar(g) water | 17,9 m3/h |
| Female thread | G 1 1/2" |
| Brand | STASTO |
SV04-112-22-X
