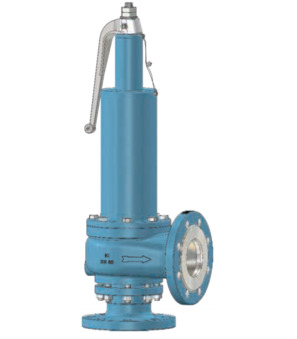

Safety valve DN25/PN16-DN25/PN16-16-C-EPDM-EPDM-12

Name: Safety valve DN25/PN16-DN25/PN16-16-C-EPDM-EPDM-12
Brand: STASTO
SKU: SV09-25-16-12-E
Price: 766.6 EUR
Availability: InStock

Safety valve Series SV09; For vapors, gases and liquids; Body steel ASTM A105; Spring cover And Outlet body EN-GJS-400-18-LT; Inlet DN25/PN16; Outlet DN25/PN16; DN 16mm; Valve head C; Seat seal EPDM; Other seals EPDM; Set pressure 12bar

Intrastat No.: 84814010
Country of origin: Germany
Weight: 4.6 Kg
Short Itemnumber:SV09251612E

https://www.stasto.hu/shop/sv09-25-16-12-e-safety-valve-dn25-pn16-dn25-pn16-16-c-epdm-epdm-12-97706 https://www.stasto.hu/web/image/product.template/97706/image_1920?unique=6319596

safety valve series SV09; for vapors, gases and liquids; body steel ASTM A105; spring cover and outlet body EN-GJS-400-18-LT; inlet DN25/PN16; outlet DN25/PN16; DN 16mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 12bar

766,60 € 766.6 EUR 766,60 €

ár kérésre

DN
- 16 mm
Inlet
- DN25/PN16
Outlet
- DN25/PN16
Valve head
- C
Body
- Steel ASTM A105
Seat seal
- EPDM
Seat seal
- EPDM
Other seals
- EPDM
Other seals
- EPDM
Cap
- Ductile iron EN-GJS-400-18-LT
Set pressure
- 12 bar

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Documents
Spare Parts

dimension
DN	16 mm
Inlet	DN25/PN16
Outlet	DN25/PN16
function
Valve head	C
materials
Body	Steel ASTM A105
Seat seal	EPDM, EPDM
Other seals	EPDM, EPDM
Cap	Ductile iron EN-GJS-400-18-LT
characteristics
Set pressure	12 bar
