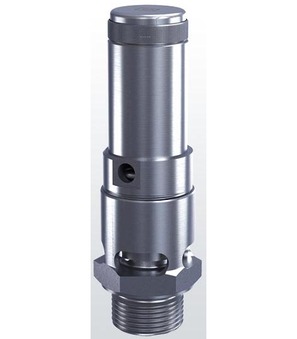

SV25-12-11-145PS-5N
safety valve series SV25; with twist lifting; body stainless steel AISI 316L; compression spring stainless steel 1.4568; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 145 psi; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; ATEX-certificate; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME)
Country of origin: Germany
Weight: 0.192 Kg
Short Itemnumber:SV251211145PS5N
safety valve series SV25; with twist lifting; body stainless steel AISI 316L; compression spring stainless steel 1.4568; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 145 psi; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; ATEX-certificate; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME)
| Design | ATEX |
