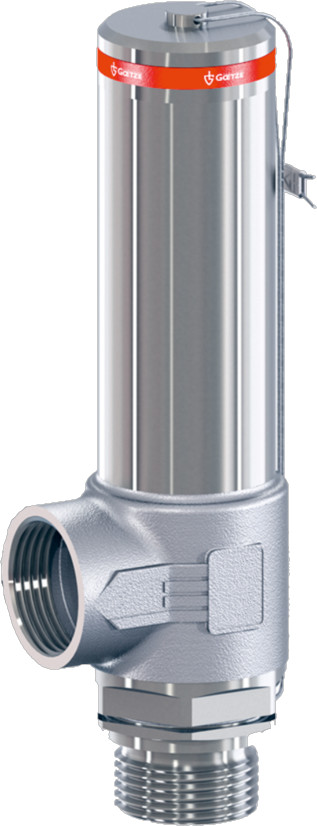

Safety valve Series SV30; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Gas-proof cover; Free of oil and grease for oxygen; Temperature range -200...+200°C; Free of oil and grease; Inlet male G1/2"; DN 10,5mm; Outlet female G1/2"; Set pressure 3Bar; Certificate TPED (2010/35/EU)
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber: SV30127.535H
Safety valve Series SV30; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Gas-proof cover; Free of oil and grease for oxygen; Temperature range -200...+200°C; Free of oil and grease; Inlet male G1/2"; DN 10,5mm; Outlet female G1/2"; Set pressure 3Bar; Certificate TPED (2010/35/EU)
Technical specifications
| Inlet male | G 1/2" |
|---|---|
| DN | 7,5 mm |
| Outlet female | G 1/2" |
| Set pressure | 3 bar |
| Inlet male | G 1/2" |
| DN | 7,5 mm |
| Outlet female | G 1/2" |
| Set pressure | 3 bar |
SV30-12-7,5-3-5H
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV30 · DE
Data sheet 10,3 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV30 · EN
Data sheet 10,3 MB Updated 13/06/2026
