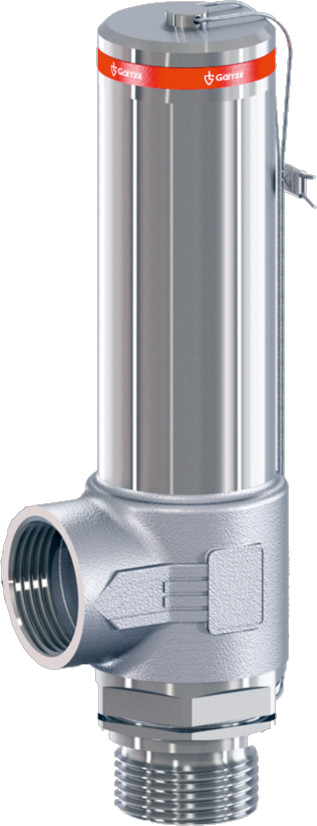

safety valve series SV30; for cryogenic applications; gas-proof cover; without lifting; for gaseous media and liquids; inlet body AISI 316L; outlet body AISI 316; seal PTFE; temperature range -200...+200°C; for oxygen max. 60°C; free of oil and grease; inlet male thread G3/8"; outlet female thread G3/8"; DN 6mm; set pressure 6,3bar
Country of origin: Germany
Short Itemnumber: SV303866.3
safety valve series SV30; for cryogenic applications; gas-proof cover; without lifting; for gaseous media and liquids; inlet body AISI 316L; outlet body AISI 316; seal PTFE; temperature range -200...+200°C; for oxygen max. 60°C; free of oil and grease; inlet male thread G3/8"; outlet female thread G3/8"; DN 6mm; set pressure 6,3bar
Technical specifications
| Inlet male | G 3/8" |
|---|---|
| DN | 6 mm |
| Outlet female | G 3/8" |
| Set pressure | 6,3 bar |
| Inlet male | G 3/8" |
| DN | 6 mm |
| Outlet female | G 3/8" |
| Set pressure | 6,3 bar |
SV30-38-6-6,3
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV30 · DE
Data sheet 10,3 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV30 · EN
Data sheet 10,3 MB Updated 13/06/2026
