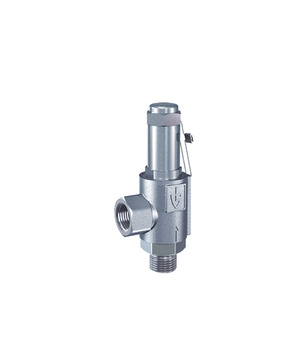

Safety valve Series SV49; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Gas-proof cover; Medium temperature -60…+225°C; Inlet male G 1/4"; DN 6mm; Outlet female G 1/2"; Seal PTFE; Einstelldruck 6bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber: SV4914W166
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber: SV4914W166
safety valve series SV49; body stainless steel AISI 316L; cap stainless steel AISI 316; gas-proof cover; medium temperature -60…+225°C; inlet male G 1/4"; DN 6mm; outlet female G 1/2"; seal PTFE; Einstelldruck 6bar
Technical specifications
| Inlet male | G 1/4" |
|---|---|
| DN | 6 mm |
| Outlet female | G 1/2" |
| Seal | PTFE |
| Inlet male | G 1/4" |
| DN | 6 mm |
| Outlet female | G 1/2" |
| Seal | PTFE |
| Set pressure | 6 bar |
SV49-14W1-6-6
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV49 · DE
Data sheet 5,6 MB Updated 13/06/2026
No spare parts are available for this product.
