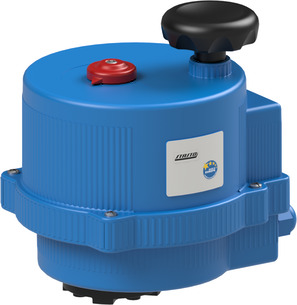

Electrical actuator VB060-L-P0S

Electrical actuator VB060-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 3.25 Kg
Short Itemnumber: VB060LP0S
https://www.stasto.hu/web/image/product.template/98643/image_1920?unique=0ec923a

electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. positioner 4-20mA/0-10V; torque 60Nm; operating time 9s; flange ISO5211 F05/F07-Stern 14 mm; voltage 24VAC/DC; protection class IP67

834,00 € 834.0 EUR 834,00 €

ár kérésre

excl. tax
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 60 Nm
Operating time 9 s
Flange ISO5211 F05/F07-star 14mm
Voltage 24VAC/DC
All specifications (5)
Documents
Data sheets, drawings and CAD files
Torque 60 Nm
Operating time 9 s
Flange ISO5211 F05/F07-star 14mm
Voltage 24VAC/DC
Protection class IP67

VB060-L-P0S

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
40406280004 x 1.0 Pcs
40406280004
Electric motor; VB060-H; VB060L; VB110-H; VB110-L; VB270-H; VB270-L, VB350-H; VB350-L
