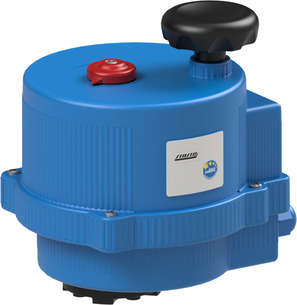

Electrical actuator VB270-H-P0T
electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; torque 270Nm; operating time 50s; flange ISO5211 F07/F10-Stern 22 mm; voltage 100-240VAC; protection class IP67; feedback via potentiometer
Intrastat No.: 85013100
Country of origin: Italy
Short Itemnumber: VB270HP0T
Country of origin: Italy
Short Itemnumber: VB270HP0T
electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; torque 270Nm; operating time 50s; flange ISO5211 F07/F10-Stern 22 mm; voltage 100-240VAC; protection class IP67; feedback via potentiometer
| Designs | |
|---|---|
| Flange ISO5211 | F07/F10-star 22mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Torque | 270 Nm |
| Operating time | 50 s |
| Others | |
| Protection class | IP67 |
No spare parts are available for this product.
