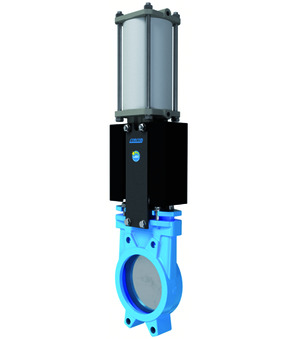

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 80mm; Length 50mm; Pressure range 0…10bar
Country of origin: Spain
Weight: 9.0 Kg
Short Itemnumber: A1N2H2580PMB
Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 80mm; Length 50mm; Pressure range 0…10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 80 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 80 mm |
| Length | 50 mm |
