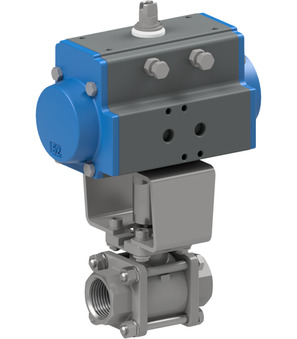

Ball valve with pneumatic actuator BA033-112-S0-A-ABS53-C001-03-C002-31-LV-2
ball valve with pneumatic actuator BA033-112-S0-A-ABS53-EPC02400-1
ball valve with pneumatic actuator BA033-112-S0-A-ABS53-EPC02400-1
1.043,34 €
1.043,34 €
Ball valve with pneumatic actuator BA033-20-S0-A
Ball valve with pneumatic actuator BA033-20-S0-A
942,80 €
942,80 €

Ball valve with pneumatic actuator BA033-112-S0-A-ABS53-C001-03-C002-31-LV-2

BA033-112-S0-A
Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; Actuator PAS0855
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.2 Kg
Short Itemnumber:BA033112S0AABS53C00103C00231LV2
https://www.stasto.hu/web/image/product.template/237947/image_1920?unique=086ccbf

BA033-112-S0-A
ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

894,52 € 894.52 EUR 894,52 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
Female thread RP 1 1/2"
DN 40 mm
Length 116 mm
Designs
Connector size 22
design
Design ATEX
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...25 bar
characteristics
Coil C001
Actuator PAS0855
