Ball valve with pneumatic actuator BA033-14-S0-A

Price.

372,60 €
Ball valve with pneumatic actuator Series BA033 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA033
  6. BA033-14-S0-A

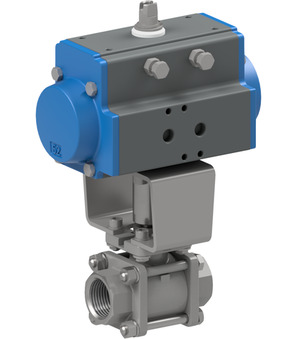

Ball valve with pneumatic actuator BA033-14-S0-A
Ball valve with pneumatic actuator BA033-212-D0-03
Ball valve with pneumatic actuator BA033-212-D0-03
ár kérésre
Ball valve with pneumatic actuator BA033-38-S0-A
Ball valve with pneumatic actuator BA033-38-S0-A
370,50 €
370,50 €

Ball valve with pneumatic actuator BA033-14-S0-A

Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 10mm; Pressure range 0…64bar; Length 57mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.673 Kg
Short Itemnumber:BA03314S0A
https://www.stasto.hu/web/image/product.template/153100/image_1920?unique=07bf1b6

ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 10mm; pressure range 0…64bar; length 57mm; actuator PAS0525

372,60 € 372.6 EUR 372,60 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1/4"
DN 10 mm
Length 57 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAS0525
Ball valve made of stainless steel BA033-14-L-A
BA033-14-L-A x 1.0
Ball valve made of stainless steel BA033-14-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...64bar; Length 57mm
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
