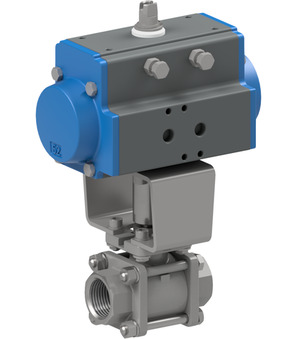

Ball valve with pneumatic actuator BA033-212-D0-03

Ball valve with pneumatic actuator BA033-212-D0-03

ball valve with pneumatic actuator series BAC1; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAD085; mounting kits stainless steel

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Short Itemnumber: BA033212D003
https://www.stasto.hu/web/image/product.template/177804/image_1920?unique=d06ecb6

ball valve with pneumatic actuator series BAC1; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 21/2"; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAD085; mounting kits stainless steel

1.200,10 € 1200.1 EUR 1.200,10 €

ár kérésre

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Female thread RP 2 1/2"
DN 65 mm
Length 153 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Female thread RP 2 1/2"
DN 65 mm
Length 153 mm

BA033-212-D0-03

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710000-21/2"
710000-21/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-21/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
ATES0707 x 1.0 Pcs
ATES0707
Mounting bridge; Stainless steel AISI 304; F07/F07; Height 60mm; Material thickness 4mm
IV/00279/23 x 1.0 Pcs
IV/00279/23
Bolt; 1.4305; Diameter 30mm; Height of the bolt 48mm; Male square 17mm; Height of the male square 18mm; Two flat 14mm; Two flat height 19mm
