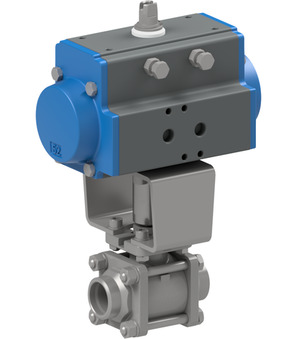

Ball valve with pneumatic actuator BA034-15-S0-3C

Ball valve with pneumatic actuator BA034-15-S0-3C

ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-64bar; length 65mm; actuator PAS0525; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 1.883 Kg
Short Itemnumber: BA03415S03C
https://www.stasto.hu/web/image/product.template/231741/image_1920?unique=87fb56f

ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-64bar; length 65mm; actuator PAS0525; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

357,10 € 357.1 EUR 357,10 €

ár kérésre

excl. tax
  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 15 mm
Length 65 mm
Butt weld ends 15 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 15 mm
Length 65 mm
Butt weld ends 15 mm

BA034-15-S0-3C

Documents

1 Documents 3 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of stainless steel BA034-15-L-3C
BA034-15-L-3C x 1.0 Pcs
Ball valve made of stainless steel BA034-15-L-3C
Ball valve made of stainless steel Series BA034-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 15mm; Pressure range 0…64bar; Length 65mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3790 x 1.0 Pcs
RI3790
Mounting bracket; F03; Bolt 11-7
