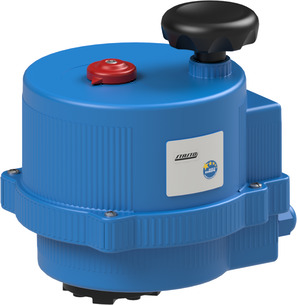

Electrical actuator VB060M-0F9-Q14-3D
Electrical actuator Series VB; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100...240VAC; Protection class IP68
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: VB060M0F9Q143D
electrical actuator series VB; metal; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. technical valve passport RU according to TR CU 032/2013; incl. TR CU 032/2013 (incl. strength calculation), TR CU 010/2011; incl. EAC-certificate; torque 60Nm; operating time 9s; flange ISO5211 F05/F07-Stern 14 mm; voltage 100...240VAC; protection class IP68
| Designs | |
|---|---|
| Flange ISO5211 | F05/F07-star 14mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Torque | 60 Nm |
| Operating time | 9 s |
| Others | |
| Protection class | IP68 |
