BA034-50-S0-3C

Name: BA034-50-S0-3C
Brand: STASTO
SKU: BA034-50-S0-3C
Price: 877.3 EUR
Availability: InStock

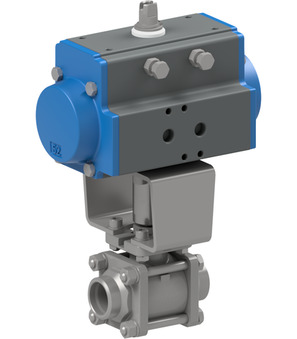

Ball valve with pneumatic actuator; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals Fibre-glass-reinforced PTFE/FKM; Single acting actuator Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm; Actuator PAS1005; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.53 Kg
Short Itemnumber: BA03450S03C

ball valve with pneumatic actuator; TA-Luft; butt weld ends; body, ball AISI 316; seals fibre-glass-reinforced PTFE/FKM; single acting actuator control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...25bar; length 136mm; actuator PAS1005; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

877,30 € 877.3 EUR 877,30 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA034-50-L-3C x 1.0

Ball valve made of stainless steel BA034-50-L-3C

Ball valve made of stainless steel Series BA034-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 50mm; Pressure range 0…25bar; Length 136mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

RI3034 x 1.0
